Description

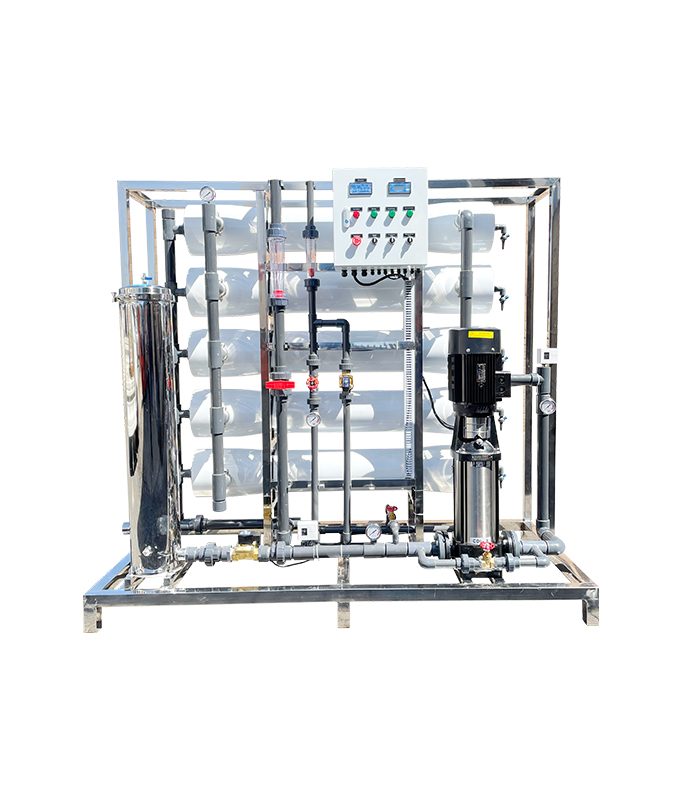

5000 Litres Per Hour Industrial Reverse Osmosis System
Compared with the common ion exchange and distilling method, the RO membrane water purification system is more efficient, cost-saving, and reliable. The reverse osmosis system is currently the most sophisticated water filtration technology. The reverse osmosis membrane retains inorganic molecules such as dissolved salts and organic substances with a molecular weight greater than 100. On the other hand, water molecules can pass through the reverse osmosis membrane freely, and desalination is 96%-99%
It is widely applied in electronics, power, photo-voltaic, beverage, medicine, chemical, petroleum industries, middle water recycling, and seawater desalination, etc.
Advantages Of Reverse Osmosis System
- Cost-saving
- Desalination at 96%-99%
- Reduced the pressure and noise from the pump
Function
| Item |
Function |
| precision filter |
prevent large particles, bacteria, viruses into the RO membrane, accuracy is 5um |
| High-pressure pump |
Provide the high pressure for RO membrane |
| Reverse Osmosis system |
the main part of the plant. The RO membrane’s desalting rate can reach 99%, removing over 99% of ions |
| UV sterilizer |
kill bacteria |
Description
| Capacity |
5000LPH/40000GPD |
| Voltage |
380V/50Hz,380V/60Hz, Three phase |
| Recovery |
50%-70% |
| Desalination |
96%-99% |
| Membrane Qty |
5pcs |
| Temp of raw water |
1-45℃ |
| Feed Water Pressure |
1-5 bar |
| Raw water TDS |
0-1000ppm |
| Application raw water |
Tap water, Brackish water |
| RO Membrane |
Vontron, Dow |
| Item name |
Material |
| Pressure gauge |
assembly |
| HP PUMP |
SS304 |
| RO Membrane housing |
FRP |
| Pure Flowmeter |
Plexiglas Panel |
| waste Flowmeter |
Plexiglas Panel |
| Conductivity meter |
engineering plastics |
| Pressure switch |
brass |
| inlet valve |
brass |
| flush valve |
brass |
| Regulating valve |
brass |
| UV sterilizer |
SS304 |
| Electronic control system |
air switch.electric relay.alternating current contractor. switch. LED |
| control box |
SS304 /Mild Steel |
| Frame |
SUS304 |
| pipeline |
UPVC 2” – 50mm |
